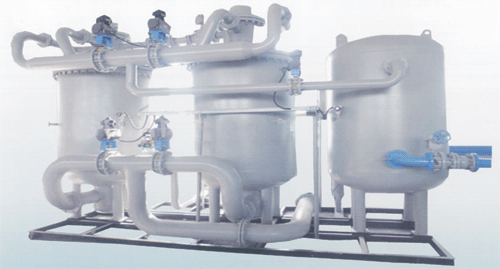

常壓解吸變壓吸附制氧設備（Vacuum Desorption PSA Oxygen Plant）
流程簡介：
原料空氣經(jīng)壓縮機增壓，壓縮空氣進緩沖罐后進入吸附器，空氣中的N2、H2O、CO2及碳氫化合物被吸附劑吸附，同時獲得氧氣，吸附塔吸附飽和后，自動切換，該吸附器減壓至大氣壓再生。本設備有兩個吸附塔交替使用，連續(xù)獲得氧產品。
Feed air is compressed by the air compressor. The compressed air is led to the buffer tank and then to the adsorber, nitrogen, moisture, carbon dioxide and hydrocarbon in the air are adsorbed by adsorbent, product oxygen is obtained at the same time. Once the adsorbent in the adsorber is saturated, the system will change over automatically, and this adsorber will be depressurized to atmospheric pressure for regeneration. There are two adsorbers working alternatively to generate product oxygen continuously.

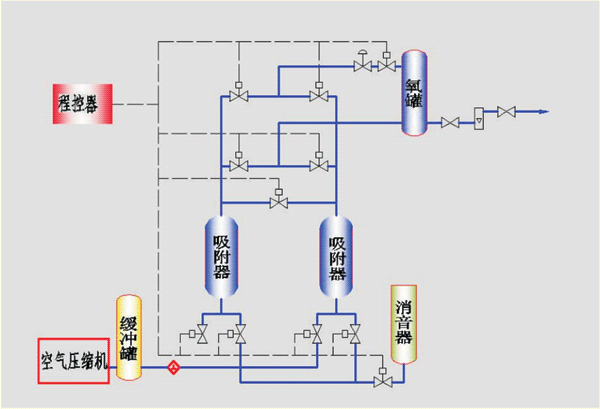

PSA制氧設備流程示意圖：PROCESS
FLOW SHEET FOR PSA OXYGEN PLANT
| 型號 |
氧氣純度 |
氧氣輸出壓力 O2 Output Pressure |
氧氣產量 Nm3/h O2 Output |
裝機功率 Kw Power |
占地面積 m×m Area Taken |
| PSAO-5 | 90%至95% | 0.2MPa | 5 | 7.5 | 4×2 |
| PSAO-10 | 10 | 15 | 4×3 | ||
| PSAO-15 | 15 | 30 | 4×5 | ||
| PSAO-20 | 20 | 37 | 4×7 | ||
| PSAO-30 | 30 | 45 | 4×8 | ||
| PSAO-40 | 40 | 55 | 4×10 | ||
| PSAO-50 | 50 | 65 | 5×10 | ||
| PSAO-70 | 70 | 95 | 6×10 | ||
| PSAO-80 | 80 | 120 | 7×10 | ||
| PSAO-100 | 100 | 132 | 8×12 | ||
| PSAO-150 | 150 | 200 | 12×12 |
通用條件：
電力：低壓電源：3相
冷卻水：溫度≤32℃
安裝場地：室內非防爆地區(qū)，環(huán)境溫度5～35℃
Utilities:
Power: LT power supply: 3-phase
Cooling Water: Temperature ≤32℃
Installation Area: Non Explosion-proof Area
